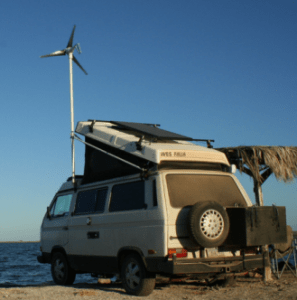

We recommend AIR 30 for small battery-charging applications such as small cabins, RVs, camping, garden lighting, education, hobbies and more. The AIR 30 is an ideal wind turbine for hybrid systems with solar. AIR 30 is built and backed by the worldwide leader in small wind.
Features
- Advanced microprocessor for reliable energy production
- Integrated overcharge protection
- Permanent mold cast aluminum body
- High-quality, field tested components
- Quiet operation Lightweight; easy to install
- Energy produced in light winds
- Plug and play battery connection
- For use in non-corrosive environments
| [tabs tab1=”Tab 1 Title” tab2=”Tab 2 Title” tab3=”Tab 3 Title”] [tab]Insert tab 1 content here[/tab] [tab]Insert tab 2 content here[/tab] [tab]Insert tab 3 content here[/tab] [/tabs]AIR 30 Specifications | |
|---|---|
| Energy Potential | Approx. 30 kWh a month at 13.4 mph (6.0 m/s) |
| Swept Area | 11.5 ft2 (1.07 m2) |
| Rotor Diameter | 46 in (1.17 m) |
| Weight | 13 lb (5.9 kg) |
| Shipping Dimensions | 27 x 12.5 x 9 in (686 x 318 x 229 mm) 17 lb (7.7 kg) |
| Startup Wind Speed | 8 mph (3.58 m/s) |
| Voltage | 12, 24 and 48 VDC |
| Turbine Controller | Microprocessor-based smart internal regulator |
| Body | Cast aluminum |
| Blades | (3) Injection-molded composite |
| Alternator | Permanent magnet brushless |
| Overspeed Protection | Electronic torque control |
| Survival Wind Speed | 110 mph (49.2 m/s) |
| Mount* | 1.5 in schedule 40 pipe 1.9 in (48 mm) outer diameter |
| Warranty | Five year limited |
