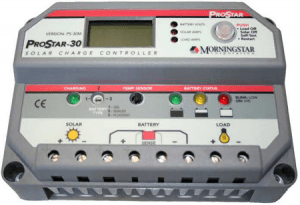

Morningstar ProStar PS-30M 30A, Charge Controller with Display (12/24V)

$323.85

Out of stock

Category:

Morningstar CorporationMorningstar logo

ProStar PWM Charge Controller
12/24V, 30A with Display
PS-30M PS-30M

Morningstar’s ProStar is the world’s leading mid-range solar controller for both professional and consumer applications. This second generation ProStar adds new features and protections using highly advanced technology. These improvements provide longer battery life and improved system performance. The ProStar line of controllers set new standards for reliability and self-diagnostics.

The new ProStar is available in 15 or 30 amps, 12/24 or 48 volt, and negative or positive ground. The controller may be paralleled for a solar input rating of up to 300 amps. An optional meter provides an extensive display of self-testing and system status.

Features

  • PWM series battery charging (not shunt)
  • 3-position battery select: gel, sealed or flooded
  • Very accurate control and measurement
  • Jumper to eliminate telecom noise
  • Tropicalization: conformal coating, stainless steel fasteners & anodized aluminum heat sink
  • Current compensated low voltage disconnect (LVD)
  • LED’s indicate battery status and faults
  • Capable of 25% overloads
  • 5 Year Warranty



Electronic ProtectionsPS-dimensions

  • Short-circuit — solar and load
  • Overload — solar and load
  • Reverse polarity
  • Reverse current at night
  • High voltage disconnect
  • High temperature disconnect
  • Lightning and transient surge protection
  • Loads protected from voltage spikes
  • Automatic recovery with all protections
Model PS-15 PS-15M PS-15M-48V PS-15M-48V-PG PS-30 PS-30M PS-30M-PG
Description ProStar-15 Amp
(12/24 Volt)
ProStar-15 Amp with Meter
(12/24 Volt)
ProStar-15 Amp with Meter
(48 Volt)
ProStar-15 Amp with Meter
(48 Volt, positive ground)
ProStar-30 Amp
(12/24 Volt)
ProStar-30 Amp with Meter
(12/24 Volt)
ProStar-30 Amp with Meter
(12/24 Volt, positive ground)
Rated Solar Current 15 Amps 15 Amps 15 Amps 15 Amps 30 Amps 30 Amps 30 Amps
Rated Load Current 15 Amps 15 Amps 15 Amps 15 Amps 30 Amps 30 Amps 30 Amps
System Voltage 12 / 24 Volts 12 / 24 Volts 48 Volts 48 Volts 12 / 24 Volts 12 / 24 Volts 12 / 24 Volts
Mechanical Specifications
Weight: 12oz (0.34 kg)
Wire Size: #6 AWG (16 mm²)

Digital meter

  • Highly accurate voltage and current display
  • Low self-consumption (1 mA)
  • Includes manual disconnect button
  • Displays 5 different protection functions and disconnect conditions
  • Self-diagnostics (self-test) provides a comprehensive test of the ProStar
    • Displays 9 different controller status parameters, including temperature
    • Displays detected faults



Optimized Battery Charging:

The ProStar has 4 stages of charging to provide increased battery capacity and life.chargingpicMorningstar logo
