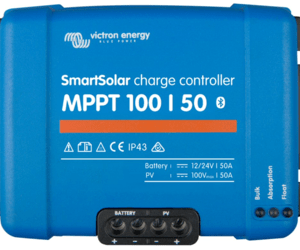

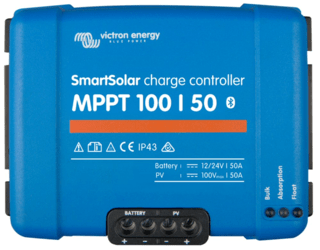

With the Victron Connect App, users can remotely control and monitor the extensive features of their SmartSolar MPPT charger’s with built-in bluetooth.
FEATURES:
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point detection for partial shading conditions
- Intelligent battery management by load shedding
- Optional Smart Solar MPPT Plug-in Display is available for Smart Solar MPPT Charge Controllers 150V/45A and larger
- Optional Blue Solar MPPT Display is available for Blue Solar MPPT Charge Controllers and Smart Solar MPPTs 150V/35A and smaller
- Automatic battery voltage recognition
- Flexible charge algorithm
- Over-temperature protection and power de-rating when temperature is high
- 5 Year Warranty
ELECTRICAL CHARACTERISTICS:
| Charger Specifications | Blue Solar 75/15 | Smart Solar 75/15 | Blue Solar 100/50 | Smart Solar 100/50 | |
| Battery Voltage | 12/24V Auto Select | ||||
| Rated Charge Current | 15A | 50A | |||
| Nominal PV Power 12V | 220 W | 700W | |||
| Nominal PV Power 24V | 440 W | 1400 W | |||
| Max PV Short Circuit Current | 20A | 15A | 60A | ||
| Maximum PV Open Circuit Voltage | 75V | 100V | |||
| Automatic Load Disconnect | Yes, Max Load 15A | No | |||
| Peak Efficiency | 98% | ||||
| Self Consumption | 12V: 20 mA 24V: 10 mA | ||||
| Protections | Battery reverse polarity (fuse) Output short circuit / Over temperature |
Battery reverse polarity (fuse, not user accessible) |
|||
| Optional Remote Display | Blue Solar MPPT Display | ||||
| Bluetooth Capability | With Optional Bluetooth Dongle | Built-in | With optional Bluetooth Dongle | Built-in | |
| Operating Temperature | -30 to +60°C (full rated output up to 40°C) | ||||
| Enclosure |
IP43 (electronic components), IP22 (connection area)
|
||||
| Weight/Dimensions | 1.1 lbs / 4.4″ x 4.5″ x 1.6″ | 2.9 lbs / 5.1″ x 7.3″ x 2.8″ | |||
| Charger Specifications | Smart Solar 100/30 | Smart Solar 150/35 | Smart Solar 150/60 | Smart Solar 150/100 | Smart Solar 250/100 |
| Battery Voltage | 12/24V Auto Select |
12/24/48V Auto Select |
|||
| Rated Charge Current | 30A | 35A | 60A | 100A | |
| Nominal PV Power 12V | 440 W | 500 W | tbd- not released yet | 1450 W | |
| Nominal PV Power 24V/48V | 880 W | 1000 W/2000W | tbd- not released yet | 2900W/5800W | |
| Max PV Short Circuit Current | 35A | 40A | tbd- not released yet | 70A | |
| Maximum PV Open Circuit Voltage | 100V |
145 – 150V
|
245 – 250V
|
||
| Peak Efficiency | 98% | ||||
| Self Consumption | 10 mA | tbd- not released yet | Less than 35mA @ 12V / 20mA @ 48V | ||
| Protections |
Battery reverse polarity
(fuse, not user accessible) PV reverse polarity
Output short circuit
Over temperature
|
||||
| Optional Remote Display | Blue Solar MPPT Display | Smart Solar MPPT Plug-In Display | |||
| Bluetooth Capability | Built-in | ||||
| Operating Temperature | -30 to +60°C (full rated output up to 40°C) | ||||
| Enclosure | IP43 (electronic components), IP22 (connection area) | ||||
| Weight/Dimensions | 2.9 lbs / 5.1″ x 7.3″ x 2.8″ | tbd- not released yet | 10 lbs / 8.5″ x 11.6″ x 4″ | ||
