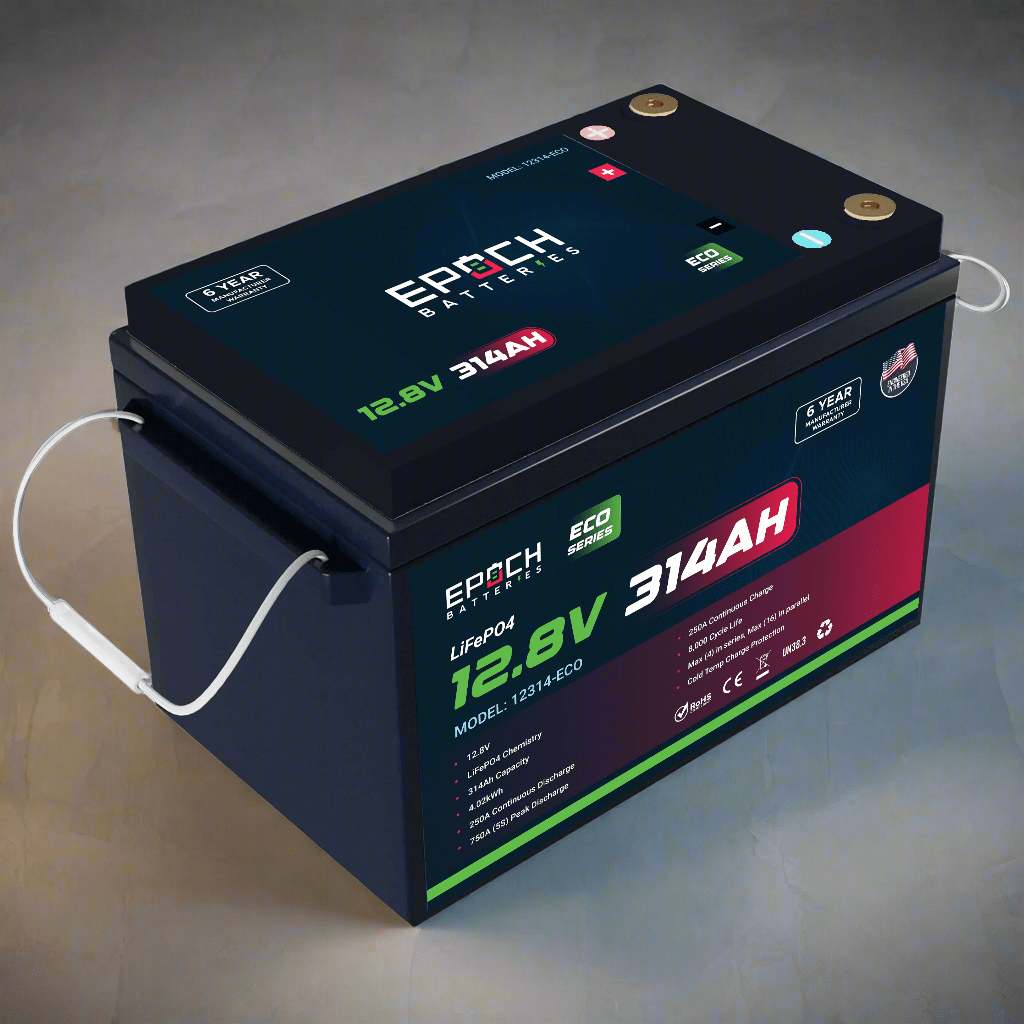

Epoch 12V 314ah (Eco Series)

LiFePO4 Chemistry – Deep Cycle Battery
L15.5″ x W7.63″ x H10.5″
Low-Temperature cut-off (Charge Protection)
Built-in Smart Battery Management System (BMS)
Advanced BMS system with 20+ safety features built in
Over charge and over discharge protection
Over current and short circuit protection
High & low temperature disconnects
Max (4) in Series up to 48V
Max (16) in Parallel up to 64.3 kWh
8,000+ Cycle life & Maintenance-free
6 Year Manufacturer Warranty

Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4
Current
Ah Capacity: 314Ah
Max Continuous Discharge Amps: 250A
Max Charge Current Amps: 250A
Max Discharge Peak Current Amps: 750A (5 Seconds)
Series | Parallel: Max (4) in Series, Max (16) in Parallel
Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 – 14.6V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)

Weight and Dimensions

Weight: 57 (LBS)
Length: 13.75″ @ Base, 15.5″ @ Handles (inches)
Width: 7.63″ (inches)
Height: 10.0″, 10.5′ with Terminal Bolts (inches)
